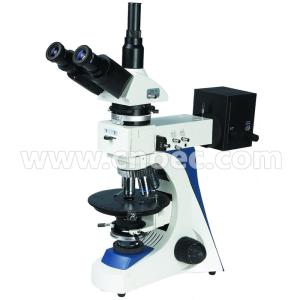

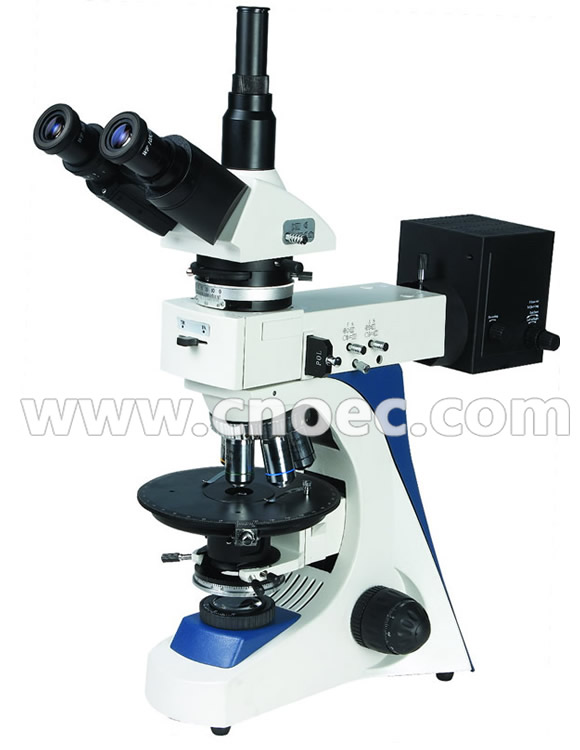

Laboratory Research Trinocular Polarizing Light Microscope With CE A15.1103

Product Categories

Opto-Edu (Beijing) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Laboratory Research Trinocular Polarizing Light Microscope With CE A151103
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE, Rohs

Model Number : A15.1103

MOQ : 1 pc

Price : Negotiation

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Contact Now

A15.1103 Polarizing Microscope Specification			-A	-B
Head	Compensation Free Binocular,30°inclined,55mm-75mm		●	-
Head	Compensation Free Trinocular,30°inclined,55mm-75mm		-	●
Eyepiece	Wide field WF10X/22mm		●	●
	Gridding Eyepiece		●	●
	Cross Eyepiece		●	●
	Eyepiece with Reticule		●	●
Objective	Stress-Free Infinity Plan-Achromatic Metallurgical Objective	40X	●	●
		60X	●	●
	Stress-Free Infinity Plan Achromatic Objective	4X	●	●
		10X	●	●
		20X	●	●
		40X	●	●
		60X	●	●
Condenser	Swing Type N.A.1.25 Abbe Condenser with Iris Diaphragm		●	●
Focus System	Coaxial Coarse and Fine Focusing with Rack and Pinion Mechanism; Fine Focusing Scale Value 0.002mm.		●	●
Nosepiece	Quintuple Nosepiece with centering adjustable		●	●
Filter	Green Inserting Type Filting		●	●
	Blue Inserting Type Filting		●	●
	Neutral Inserting Type Filting		●	●
Stage	Rotary Stage,Stage Size: Φ172mm,Moving Range:360°		●	●
Testing Piece	Gypsum 1 λTesting Piece		●	●
	Mica1/4 λ		●	●
	Quartz Wedge Testing Piece		●	●
Illumination	High brightness Fixed Illumination		●	●
Light Source	Upper:Halogen Bulb 12V/30W,AC 85V-230V ,Adjustble Brightness		●	●
Light Source	Down:Halogen Bulb 12V/30W,AC 85V-230V ,Adjustble Brightness		●	●
Checking Tool	0.01mm Micrometer		●	●

Optional Accessories
Eyepiece	WF16X
	WF20X
	P16X
Stress-Free Infinity Plan-Achromatic Metallurgical Objective	4X
	10X
	20X
Photo Adapter	Photo Adapter
CCD Adapter	0.5X
	0.57X
	0.75X
